6S 320kV 350kV 380kV dronemoottorit LN4715 1,5kg työntövoima

Electric Spec.

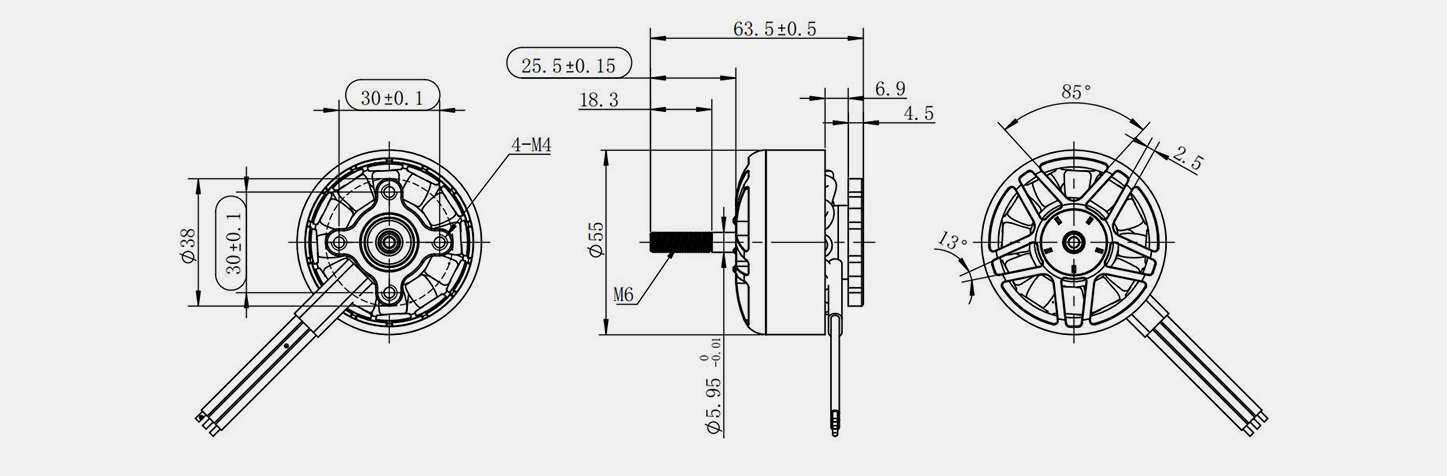

Max. P (W)	Jännite (V)	Max. minä (A)	KV	Tyhjävirta (A)		Resistanssi (mΩ)	puolalaiset	Moottorin himm. (mm)		Staattorin himm. (mm)	Asennus (mm)	N.W. (g)	Prop. (tuumaa)
1052	25-33.6	45	350	1.5		45	14	φ55*38		φ47*15	M3-30*30	277	13"
Työntövoiman testaustiedot
Potkuri	kV arvo	Kaasu (%)		U (V)	I (A)		N (RPM)		Turska (W)		Pin (W)	Tehokkuus (G/W)
GF1310*3	350kV	30		25.13	0.304		1737.5		285		7.6	4.959
		35		25.1	1.128		2188.7		346.9		28.3	4.644
		40		25.07	2.15		2586.8		395.4		53.9	4.6
		45		25.01	3.905		3072.1		444.1		97.7	4.814
		50		24.96	5.722		3427.8		469.5		142.8	5.128
		55		24.9	7.707		3734.9		484.3		191.9	5.495
		60		24.82	10.228		4070.8		494.1		253.9	5.973
		65		24.7	13.866		4458		491.4		342.5	6.798
		70		24.59	17.485		4785.6		481.2		429.9	7.62
		75		24.45	21.663		5093.5		460.1		529.7	8.72
		80		24.3	26.413		5384.7		428.8		641.8	10.186
		85		24.13	31.418		5661.1		393.6		758.3	11.977
		90		23.96	36.765		5909.1		352.2		880.9	14.277
		95		23.75	42.922		6131.1		300.8		1019.5	17.8
		100		23.7	44.411		6217.5		292.6		1052.3	18.591

6S 320kV 350kV 380kV dronemoottorit LN4715 1,5kg työntövoima

The LN4715 6S harjaton droonimoottori on suunniteltu korkean suorituskyvyn moniroottorisovelluksiin, jotka tarjoavat tehokkaan ja tehokkaan työntövoiman tarkalla ohjauksella. Suunniteltu tuk...

Tuotteen parametrit

×

Air purifier 24VDC 40W Fan motor Ceiling Fan Motor wo60 Series

Lähetä tiedustelu

Product Features:
Compatible with air purifiers and ceiling fans
Low power consumption
Quiet operation for minimal noise disturbance
Reliable and efficient motor design

Air purifier 24VDC 40W Fan motor Ceiling Fan Motor wo60 Series

Product Definition :This is a 24VDC fan motor designed for air purifiers and ceiling fans. It provides reliable performance with a power consumption of 40W, ensuring efficient air circulation and filt...

Tuotteen parametrit

×

Dual voltage 230VAC/12VDC into one drive for remote area solar panel power supply system W70 Series with metal shell

Lähetä tiedustelu

Product Features:
Dual voltage support for flexible power sources
Designed with a durable metal shell for enhanced protection
Ideal for solar-powered systems
Reliable performance in remote areas

Dual voltage 230VAC/12VDC into one drive for remote area solar panel power supply system W70 Series with metal shell

Product Definition :This motor supports dual voltage inputs (230VAC and 12VDC), allowing it to be used in remote areas with solar panel systems. It is equipped with a robust metal shell for durability...

Tuotteen parametrit
